Detail produk:
|
| Bahan: | keramik | jenis paket: | Melalui Lubang |
|---|---|---|---|
| tegangan makan: | 300VAC | Suhu Operasional: | -25 ~125℃ |
| resistensi isolasi: | IR 10000MΩ | Toleransi kapasitansi: | ± 10% |
| kapasitansi: | 470PF | Spasi Pimpin: | 7,5 mm |
| Warna: | Biru | ||
| Menyoroti: | Anti Isolasi Y2 Safety Capacitor,470PF Y2 Safety Capacitor,Tahan Karat Kapasitor AC Tegangan Tinggi |
||

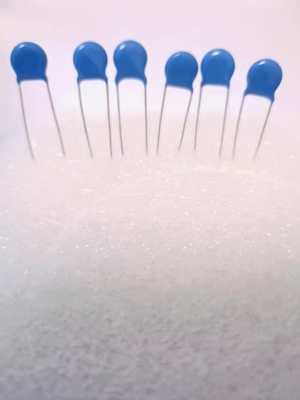

Cakram Keramik Keselamatan Y2 Kapasitor AC 300V471K P7.5mm Y5U
| Parameter produk | |
| Standar Referensi Spesifikasi | IEC 60384-14 ;EN 60384-14 ;IEC UL60384 ;K 60384 |
| Monogram yang Disetujui | VDE /KTL / UL / CQC |
| Subkelas ;Nilai Tegangan (UR) | X1 / Y1/Y2 ;400VAC / 300VAC |
| Rentang kapasitansi | 100pF hingga 10000pF |
| Bukti Tegangan | 4000VAC selama 1 menit/2000VAC selama 1 menit/1800VAC selama 1 menit |
| Toleransi kapasitansi | Y5P±10%(K) ;Y5U,Y5V±20%(M) diukur pada 25℃,1Vrms,1KHz |
| Faktor Disipasi (tgδ) | Y5P,Y5U tgδ≤2,5% ;Y5V tgδ≤5% diukur pada 25℃,1Vrms,1KHz |
| Resistansi Isolasi (IR) | IR≥10000MΩ,1 menit,100VDC |
| Suhu Operasional | -40℃ hingga +85℃ ;-40℃ hingga +125℃ |
| Karakteristik Suhu | Y5P, Y5U, Y5V |
| Epoxy Tahan Api | UL94-V0 |
| model | lebar | ketebalan | jarak kaki | memimpin | Tegangan | kapasitas | bahan | Toleransi |
| Y2-103M-Y5V | 13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 10000pF | Y5V | ±20% |
| Y2-472M-Y5V | 9.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 4700pF | Y5V | ±20% |
| Y2-332M-Y5V | 8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 3300pF | Y5V | ±20% |
| Y2-222M-Y5V | 7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5V | ±20% |
| Y2-152M-Y5V | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5V | ±20% |
| Y2-102M-Y5V | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5V | ±20% |
| Y2-472M-Y5U | 13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 4700pF | Y5U | ±20% |
| Y2-332M-Y5U | 11mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 3300pF | Y5U | ±20% |
| Y2-222M-Y5U | 8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5U | ±20% |
| Y2-152M-Y5U | 8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5U | ±20% |
| Y2-102M-Y5U | 7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5U | ±20% |
| Y2-821K-Y5U | 7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5U | ±10% |
| Y2-681K-Y5U | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5U | ±10% |
| Y2-561K-Y5U | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5U | ±10% |
| Y2-471K-Y5U | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5U | ±10% |
| Y2-102K-Y5P | 10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5P | ±10% |
| Y2-821K-Y5P | 10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5P | ±10% |
| Y2-681K-Y5P | 8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5P | ±10% |
| Y2-561K-Y5P | 8mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5P | ±10% |
| Y2-471K-Y5P | 7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5P | ±10% |
| Y2-331K-Y5P | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 330pF | Y5P | ±10% |
| Y2-221K-Y5P | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 220pF | Y5P | ±10% |
| Y2-151K-Y5P | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 150pF | Y5P | ±10% |
| Y2-101K-Y5P | 6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 100pF | Y5P | ±10% |
Aplikasi:
1. Sangat cocok untuk sirkuit penekan kebisingan dari sirkuit catu daya peralatan elektronik
2. Dapat digunakan dalam rangkaian kopling antena dan bypass
3. Panel kontrol berbagai peralatan rumah tangga kecil
4. Filter daya
5. Beban AC frekuensi tinggi
6. Mengalihkan catu daya
7. Ballast elektronik
8. lampu LED
