Detail produk:
|
| Jenis: | Kapasitor Keramik | Tegangan Terukur: | 2KV |
|---|---|---|---|
| panjangnya: | 3,2 ± 0,15 mm | Rentang kapasitansi (uF): | 100pF ~ 33nF |
| jenis paket: | Permukaan gunung | Toleransi kapasitansi: | ±10% |
| Lapisan daging: | 1206 (3216M) | Fitur: | konsumsi, sirkuit frekuensi tinggi |
| Aplikasi: | bypass pemisahan filter | Lebar: | 1,6 ± 0,15mm |
| Menyoroti: | Kapasitor Multilayer Keramik Tegangan Tinggi,Kapasitor Multilayer Keramik 2KV,Kapasitor Keramik Monolitik 2KV |
||

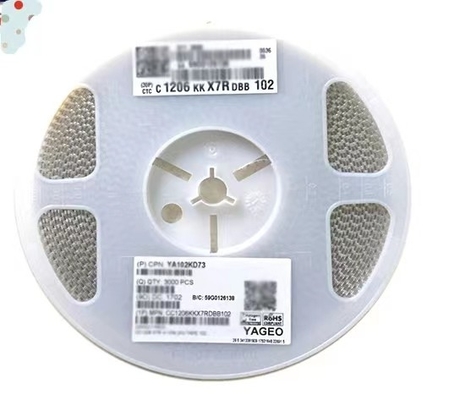

Kapasitor Miltilayer Keramik tegangan tinggi 1206 X7R 102K/2KV
| Ikhtisar spesifikasi | |||||
|
Keterangan |
TC kode |
Seri |
Kisaran kapasitansi |
Rentang tegangan: |
Ukuran |
|
Diskrit |
NP0 |
Tujuan umum | 0,22 pF hingga 33 nF | 16 V hingga 25 V | 0201, 0402, 0603, 0805, 1206, 1210 |
|
Tujuan umum |
0,22 pF hingga 22 nF |
50 V |
0201, 0402, 0603, 0805, 1206, 1210, 1812 |
||
| Tegangan sedang | 0,47 pF hingga 22 nF | 100 V hingga 630 V | 0603, 0805, 1206, 1210, 1808, 1812 | ||
|
Tegangan tinggi |
0,47 pF hingga 2,7 nF |
1kV, 2kV, 3 kV |
1206, 1210, 1808, 1812 |
||
| Frekuensi tinggi | 0,22 pF hingga 8,2 pF | 50 V | 0402, 0603, 0805 | ||
| gelombang mikro | 0,47 pF hingga 47 pF | 50 V | 0603, 0805, 1206 | ||
|
X7R |
Tujuan umum & kapasitansi tinggi |
100 pF hingga 22 F |
6,3 V hingga 50 V |
0201, 0402, 0603, 0805, 1206, 1210, 1812 |
|
| Tegangan sedang | 100 pF hingga 1 F | 100 V hingga 630 V | 0603, 0805, 1206, 1210, 1808, 1812 | ||
| Tegangan tinggi | 100 pF hingga 33 nF | 1 kV sampai 3 kV | 1206, 1210, 1808, 1812 | ||
| Induktansi rendah | 10 nF hingga 220 nF | 10 V hingga 50 V | 0306, 0508, 0612 | ||
|
X5R |
Tujuan umum & kapasitansi tinggi |
10 nF hingga 100 F |
6,3 V hingga 50 V |
0201, 0402, 0603, 0805, 1206, 1210, 1812 |
|
| Y5V | Tujuan umum & kapasitansi tinggi | 4,7 nF hingga 47 F | 6,3 V hingga 50 V | 0201, 0402, 0603, 0805, 1206, 1210 | |
|
Sertifikasi keselamatan produk |
NP0 | Tipe SC tegangan tinggi | 2,0 pF hingga 470 pF | X1/Y2, X2/Y3 | 1808, 1812 |
| X7R | Tipe SC tegangan tinggi | 150 pF hingga 1,5 nF | X1/Y2, X2/Y3 | 1808, 1812 | |
|
C-Array |
NP0 | array 4C | 10 pF hingga 470 pF | 50 V | 0508, 0612 |
| X7R | array 4C | 180 pF hingga 100 nF | 16 V hingga 50 V | 0508, 0612 | |
| Y5V | array 4C | 10 nF hingga 100 nF | 25 V | 0612 | |
| Dimensi kasus: | |||||||
| Kapasitor diskrit - Tujuan umum | |||||||
|
|
Penunjukan ukuran kotak: | Dimensi dalam mm | |||||
| Berbasis inci | Metrik | L1 | W | L2 / L3 menit | L2 / L3 maks | L4 menit | |
| 0201 | 0603M | 0,6 ± 0,03 | 0,3 ± 0,03 | 0,10 | 0,20 | 0,20 | |
| 0402 | 1005M | 1,0 ± 0,05 | 0,5 ± 0,05 | 0,15 | 0,30 | 0,40 | |
| 0603 | 1608M | 1.6 ± 0.10 | 0,8 ±0,10 | 0,20 | 0,60 | 0,40 | |
|
0805 |
2012M |
2.0 ± 0.10 (1) | 1,25 ±0,10 (1) | 0,25 | 0,75 | 0,55 | |
| 2.0 ±0.20 (2) | 1,25 ±0,20 (2) | 0,25 | 0,75 | 0,55 | |||
|
1206 |
3216M |
3.2 ±0.15 (1) | 1,6 ± 0,15 (1) | 0,25 | 0,75 | 1.40 | |
| 3.2 ±0.30 (2) | 1,6 ±0,20 (2) | 0,25 | 0,75 | 1.40 | |||
|
1210 |
3225M |
3.2 ±0.20 (1) | 2,5 ±0,20 (1) | 0,25 | 0,75 | 1.40 | |
| 3,2 ±0,40 (2) | 2,5 ±0,30 (2) | 0,25 | 0,75 | 1.40 | |||
| 1808 | 4520M | 4,5 ± 0,40 | 2.0 ±0.30 | 0,25 | 0,75 | 2.20 | |
|
1812 |
4532M |
4,5 ±0,20 (1) | 3.2 ±0.20 (1) | 0,25 | 0,75 | 2.20 | |
| 4,5 ±0,40 (2) | 3,2 ±0,40 (2) | 0,25 | 0,75 | 2.20 | |||
| Kelas ketebalan dan jumlah pengepakan | ||||||||
|
Keterangan |
Kode ukuran |
Klasifikasi ketebalan (mm) | Kuantitas per gulungan |
Kuantitas per kasus massal |
||||
|
Lebar pita |
180mm/7” | 330mm / 13” | ||||||
| Kertas | Lepuh | Kertas | Lepuh | |||||
|
Kapasitor diskrit |
0201 | 0,3 ± 0,03 |
8 mm |
15.000 | --- | 50.000 | --- | --- |
| 0402 | 0,5 ± 0,05 | 10.000 | --- | 50.000 | --- | 50.000 | ||
| 0603 | 0,8 ± 0,1 | 4 000 | --- | 15.000 | --- | 15.000 | ||
|
0805 |
0,6 ± 0,1 | 4 000 | --- | 20.000 | --- | 10.000 | ||
| 0,85 ± 0,1 | 4 000 | --- | 15.000 | --- | 8000 | |||
| 1,25 ± 0,2 | --- | 3 000 | --- | 10.000 | 5 000 | |||
|
1206 |
0,6 ± 0,1 | 4 000 | --- | 20.000 | --- | --- | ||
| 0,85 ± 0,1 | 4 000 | --- | 15.000 | --- | --- | |||
| 1,00 / 1,15 ± 0,1 | --- | 3 000 | --- | 10.000 | --- | |||
| 1,25 ± 0,2 | --- | 3 000 | --- | 10.000 | --- | |||
| 1,6 ± 0,15 | --- | 2 500 | --- | 10.000 | --- | |||
| 1,6 ± 0,2 | --- | 2 000 | --- | 10.000 | --- | |||
|
1210 |
0,6 / 0,7 ± 0,1 | --- | 4 000 | --- | 15.000 | --- | ||
| 0,85 ± 0,1 | --- | 4 000 | --- | 10.000 | --- | |||
| 1,0 ± 0,15 | --- | 3 000 | --- | 10.000 | --- | |||
| 1,15 ± 0,1 | --- | 3 000 | --- | 10.000 | --- | |||
| 1,15 ± 0,15 | --- | 3 000 | --- | 10.000 | --- | |||
| 1,25 ± 0,2 | --- | 3 000 | --- | --- | --- | |||
| 1,5 ± 0,1 | --- | 2 000 | --- | --- | --- | |||
| 1.6 / 1.9 ±0.2 | --- | 2 000 | --- | --- | --- | |||
| 2.0 ±0.2 | --- | 2 000 / 1 000 | --- | --- | --- | |||
| 2,5 ± 0,2 | --- | 1 000 / 500 | --- | --- | --- | |||
|
1808 |
1,15 ± 0,15 |
12 mm |
--- | 3 000 | --- | --- | --- | |
| 1,25 ± 0,2 | --- | 3 000 | --- | --- | --- | |||
| 1,35 ± 0,15 | --- | 2 000 | --- | --- | --- | |||
| 1,5 ± 0,1 | --- | 2 000 | --- | --- | --- | |||
| 1,6 ± 0,2 | --- | 2 000 | --- | 8000 | --- | |||
| 2.0 ±0.2 | --- | 2 000 | --- | --- | --- | |||
|
1812 |
0,6 / 0,85 ± 0,1 | --- | 2 000 | --- | --- | --- | ||
| 1,15 ± 0,1 | --- | 1 000 | --- | --- | --- | |||
| 1,15 ± 0,15 | --- | 1 000 | --- | --- | --- | |||
| 1,25 ± 0,2 | --- | 1 000 | --- | --- | --- | |||
| 1,35 ± 0,15 | --- | 1 000 | --- | --- | --- | |||
| 1,5 ± 0,1 | --- | 1 000 | --- | --- | --- | |||
| 1,6 ± 0,2 | --- | 1 000 | --- | --- | --- | |||
| 2.0 ±0.2 | --- | 1 000 | --- | --- | --- | |||
|
Induktansi rendah |
0306 | 0,5 ± 0,1 |
8 mm |
4 000 | --- | 15.000 | --- | --- |
| 0508 | 0,85 ± 0,1 | 4 000 | --- | 15.000 | --- | --- | ||
| 0612 | 0,85 ± 0,1 | 4 000 | --- | 15.000 | --- | --- | ||
|
Array |
0508 | 0,6 ± 0,1 | 4 000 | --- | --- | --- | --- | |
| 0612 | 0,8 ± 0,1 | 4 000 | --- | --- | --- | --- | ||
